Wednesday, February 21, 2018

Introduction To Mule API Security - Client ID Enforcement

Introduction

In my last article, I have introduced the procedures of creating a simple api and applying basic authentication to mule application. I am going to introduce another simple API security mechansim for mule application - Client ID Enforcement.

Both Basic Authentication and Client ID Enforcement are simple security mechanisms. Combining with Https, they can provide basic security for most applications. Nowadays, oauth2 is more popular security scheme for API security. I will cover that in my later post.

The complete source for this post are available at my github: https://github.com/garyliu1119/api-manager-explained

Setup In Anypoint Platform

First I create a new API project, namely, accounts-manager as shown in the following snapshot:

#%RAML 1.0
title: Account Api
version: 1.0.1
protocols: [ HTTP, HTTPS ]
baseUri: http://esb.ggl-consulting.com/{version}
mediaType: application/json

traits:
  client-id-required:
      queryParameters:
        client_id:
          type: string
        client_secret:
          type: string
types:
  Account:
    properties:
      id: integer
      type: string
      name: string
  Error:
    properties:
      code: integer
      errorMessage: string

/accounts:
  /{id}:
    get:
      is: [client-id-required]
      description: get an account information by id
      responses:
        200:
          body:
            application/json:
              type: Account
              example: { "id": 1234, "name": "Gary Liu", "type": "checking" }

After save the API, we need to publish the API to Exchange. In the exchange, we need to request access. By doing this we get client ID and client secret as shown in the following snapshot:

These client ID and client secrets will be available to the customers who consumes the API. These values can (should) be reset periodically.

To apply security scheme of client id enforcement, we can check the radio button of "Client ID enforcement" as shown below:

The easiest way is take the default configuration of "Custom Expression" as shown below:
That is all we need to do on the Anypoint Platform. Next, I will demonstrate the procedures to setup Mule applications.

Setup In Mule Application

The setup for the Mule application is the same as those shown in the simple security. We need to create a new Autodiscovery component like the following:


Invoke Application

To invoke the application, we need to pass the client_id and client_secret paraters as query parameters as shown in the following snapshots:

Client ID and Secret As Header

In the above section, I have demonstrated the simple way to pass client id and client secret. That is pass the client id and secret as query parameters. Apparently, this is not secure. The alternative is to pass the encrypted client id and secret as headers. The configuration is shown as the following:

There is no changes on application. The only change is how the client invoke the application. Consumers will need to invoke the application with the way as shown below:

Summary

In this post, I have demonstrated the procedures to applying security policy of client ID enforcement. There are two ways to do so:
  1. Custom configuration: passing client_id and client_secret as query parameters of headers
  2. Passing client id and secret as base 64 encrpted header
The second approach is recommended as it is more secure.

Monday, February 19, 2018

Introduction To Mule API Security - Simple Authencation

Introduction

This post covers the basic procedures to setup simple Mule API security. I assume that the audience have not knowledge of applying API Security on the Mule AnyPoint Platform. Here are the key take-aways

  1. Write a simple RAML in the Design Center of the Anypoint Platform
  2. Publish the API (RAML) to the Exchange
  3. Using API Manage to apply simple security
  4. Explain the details on how it works

The complete source code are available at my github: https://github.com/garyliu1119/api-manager-explained

Design & Publish API

In the new version of AnyPoint Platform, the api management contains 3 separate areas:

  1. Design Center
  2. Exchange
  3. API Manager

There are many editors we can use to design our API (RAML). I find design center and ATOM are the two most powerful tools. Both are easy to use. For the demo purpose, I use AnyPoint Platform's Design Center. First, create a new project as shown in the snapshot below:

Choose "API Specification", enter project name, then you can write your API in RAML. The details can be found in many documents. The code below is the simplest RAML file for the purpose of demonstrate API security.

#%RAML 1.0
title: Basic Auth API
version: v1
protocols: [ HTTP ]
baseUri: https://mocksvc.mulesoft.com/mocks/09212943-e570-413d-92f6-ef5e634f33cb/{version}  # baseUri: http://esb.ggl-consulting.com/{version}
mediaType: application/json
securitySchemes:
  basicAuth:
    description: First simple auth
    type: Basic Authentication
    describedBy:
      headers:
        Authorization:
          description: Base64-encoded "username:password"
        type: string
      responses:
        401:
          description: |
            Unauthorized: username or password or the combination is invalid
types:
  Account:
    properties:
      id: integer
      type: string
      name: string
  Error:
    properties:
      code: integer
      errorMessage: string

/accounts:
  /{id}:
    get:
      description: get an account information by id
      responses:
        200:
          body:
            application/json:
              type: Account
              example: { "id": 1234, "name": "Gary Liu", "type": "checking" }

Once the API is completed, we need to published the api to the Exchange. To publish the API to Exchange, refer the snapshot below:

Now, we can view our API in the Exchange as shown in the following snapshot:

Once the API is published to the Exchange, we can go to API Manager to import the API as shown in the following snapshot:

We can view the API as shown in the following snapshots:

By viewing API, we need few important information for the purpose of auto-discovery. The Mule 3, we need "API Name" and "API Version", respectively. For Mule 4, we need API ID.

Setup The AnyPoint Studio

In order to apply the security policy to our local running applications, we need to connect our local runtime with Anypoint Platform. To do so, we need to apply client ID and client secret of our environment to the Anypoint Studio. Firsly, we need to get the client id and client secret: Access Management --> Environment (left panel) --> Environemnt (Sandbox):

Now, go to AnypointStudio, Preference --> Anypoint Platform For Apis --> fill the client id and client secret --> Validate:

Once you validate the client id and client secret, that means our AnypointStudio or the embedded runtime can communicate with the Anypoint Platform.

Apply Security Policy In API Manager

Once the API is imported to the API Manager, we can apply the security policies, SLA Tier, alert, etc. The main purpose of this post is to demo how to apply security policies. I will cover the other area in the later posts. In this case, I plan to apply simple security and Basic Http Authentication as shown in the following snapshot:

When you apply the simple security, the platform will ask for the user name and password. Note down these credentials, we will need them when we perform the http request.

At this point, we have setup the security for the API from administrative side. Now, we need to apply the security policy (user name and password) to our application. I will cover these in the next section.

Apply Security Policy To Mule Application Using Auto Discovery

The key to control application API access is via auto-discovery and communication between API Manager and application. To achieve auto-discovery of the application, or to let api manager control the application access, we need to create an auto-discovery component as shown in the following snapshots:


The apiName and version are from API Manager as shown in the following snapshots:
The apikitRef is our definition of API Router as shown in the following snapshots:



As we can see that the security policy will apply and api passing through the api router, which is referring our API definition of api-manager-explained.raml

Run The Application

To test the security policy applying to our application, we can use PostMan as shown in the following snapshots:

The Authorization is "Basic Auth", the user name and password are shown. PostMan will automatically generate the token which is base64. And PostMan will send Authorization : [{"key":"Authorization","type":"text","name":"Authorization","value":"Basic R2FyeTEyMzQ6R2FyeTEyMzQk"...] to the server.

We can also perform the same using curl. First we need to generate the basic token as the following:

gl17@garyliu17smbp:~$ echo "Gary1234:Gary1234$" | base64
R2FyeTEyMzQ6R2FyeTEyMzQkCg==
gl17@garyliu17smbp:~$

Then, we can send the request as the following:

curl -X GET -H "Authorization: Basic R2FyeTEyMzQ6R2FyeTEyMzQk" http://localhost:18081/api/accounts/1234

That is it. Even though it seems pretty complicated, actually this is simplest mechanism.

What Is Under The Hood?

At this point, we may ask ourselves the question: How does it work? How the Anypoint Platform enforce the security policies?

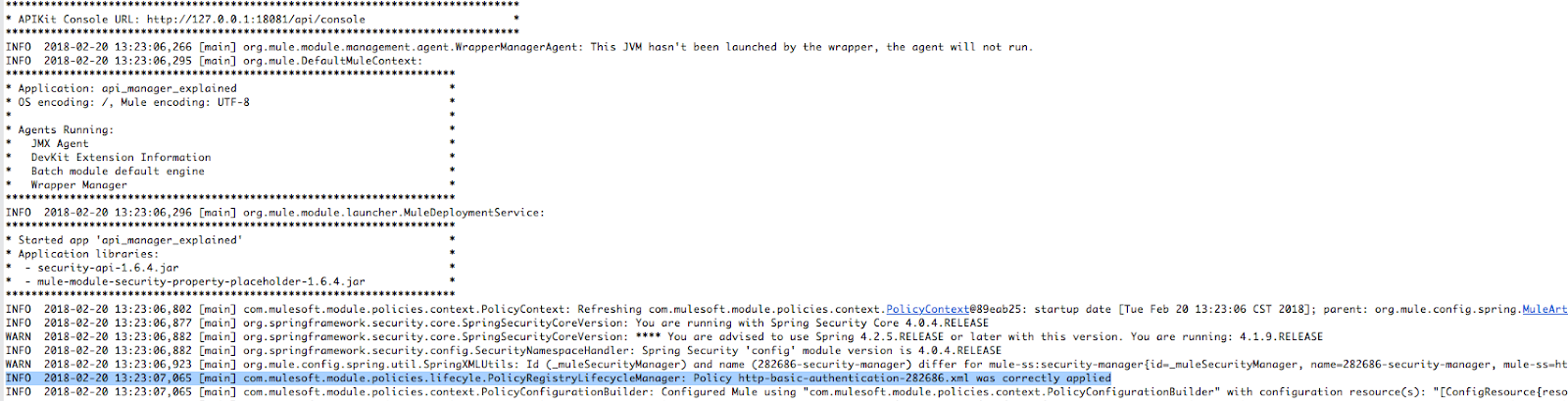

First of all, we noticed that when we run the application in our local, in our console, there are following lines:

The highlighted line showing that the policy has been applied successfully.

In the meantime, there is a file written in our workspace/.mule/http-basic-authentication-282686.xml as shown in the following snapshot:

And the contents of the file are the following:





















As you can see, Mule is using spring security. Actually, we can do the exactly same in our mule configuration. Of course, I am not recommending to do so.

Another interesting point should be noted is the network connection. Here is what I can see from my local environment by using the command of lsof:

AnypointS  987 gl17   98u  IPv6 0x3c5bcba541fe6469      0t0  TCP localhost:50687->localhost:6666 (ESTABLISHED)
AnypointS  987 gl17  223u  IPv6 0x3c5bcba541fe9269      0t0  TCP localhost:50681->localhost:50683 (ESTABLISHED)
java      1107 gl17    4u  IPv4 0x3c5bcba53fdc68b1      0t0  TCP localhost:50683->localhost:50681 (ESTABLISHED)
java      1107 gl17  498u  IPv4 0x3c5bcba5417148b1      0t0  TCP localhost:6666->localhost:50687 (ESTABLISHED)
java      1107 gl17  526u  IPv4 0x3c5bcba544131211      0t0  TCP garyliu17smbp.frontierlocal.net:50927->ec2-34-231-107-145.compute-1.amazonaws.com:https (ESTABLISHED)
The last line shows the TCP connection between Anypoint Platform and my local runtime.

Summary

In this post, I have shown the details of setup and applying API security to mule applications. I covered the underneath communication between local runtime and Anypoint Platform. In the following post I will cover client ID enforcement, another simple security mechanisms. At the end of this series, the reader should be able to master the API security related to the mule platform.
